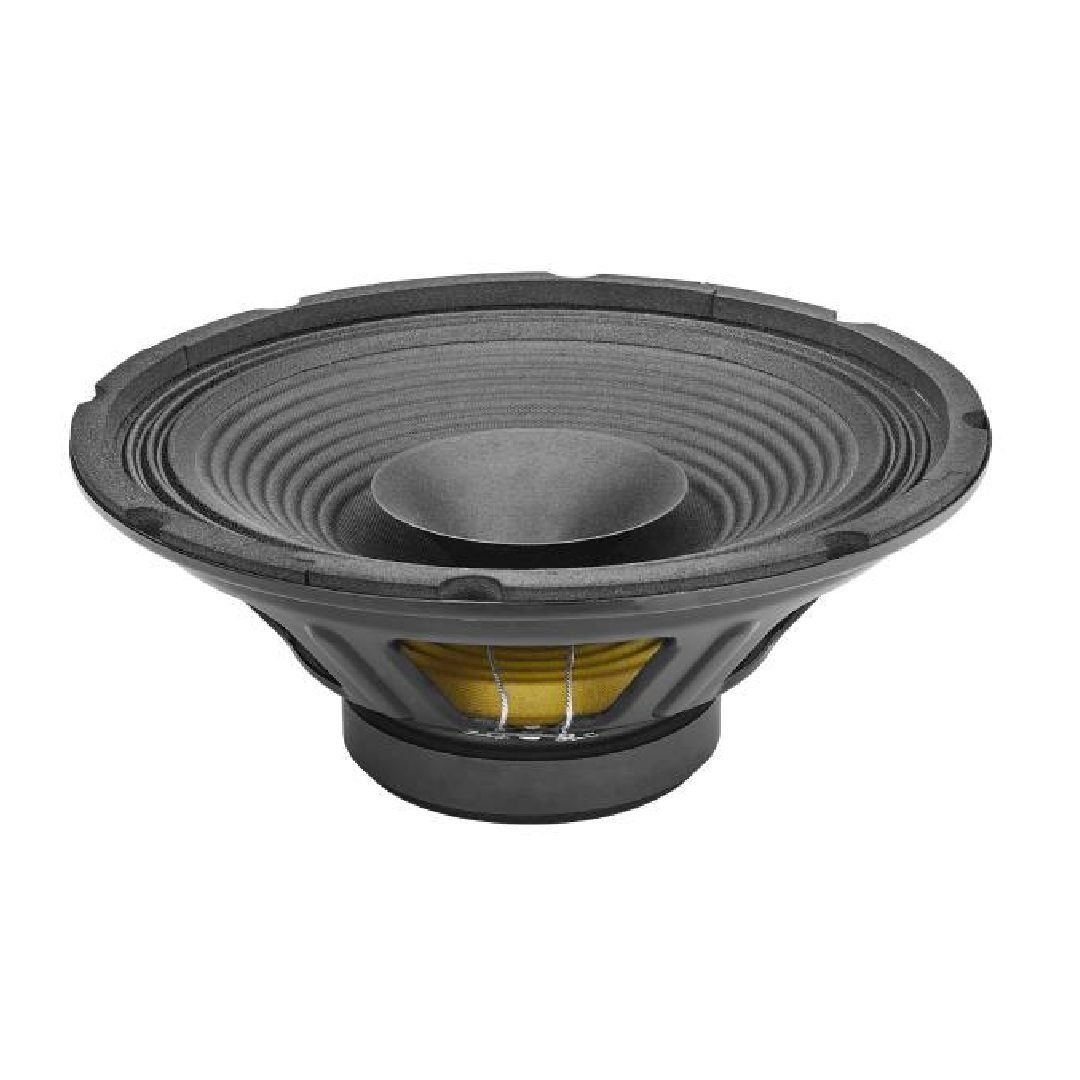

12FR-PASSED
It is specially designed for 2 or 3 way systems.
It originates from a 1.5″ CCAW Voice Coil. The Premium Cone Set with the high-grade ferrite magnet provides an amazing FULL RANGE response. It is the best choice public addressing live programs.
<t
| Nominal Diameter | 12″ |
|---|---|
| Rated Impedance | 8Ω |
| Power Capacity | 100 Watts RMS |
| Sensitivity | 96dB |
| Frequency Range | 60Hz – 14kHz |
| Voice Coil Diameter | 1.5 inch |
| Voice Coil Material | Kapton / CCAW |
| Magnet Size | 134×57×20 mm |
| Magnet Type | Ferrite |
| Chassis Material | Pressed Steel |
This speaker is specially designed for 2-way and 3-way systems, delivering balanced full-range performance, clarity, and reliability for professional audio applications. It is an excellent choice for public addressing and live programs, where clear sound reproduction and consistent coverage are essential.
At its core, the driver features a 1.5-inch CCAW (Copper-Clad Aluminum Wire) voice coil, engineered for efficient power handling and reduced weight. This design ensures stable performance with minimal distortion, allowing the speaker to perform smoothly during long operating hours.
The premium cone set, combined with a high-grade ferrite magnet, is acoustically tuned to provide an amazing full-range response. This allows the speaker to reproduce clear vocals, detailed mids, and controlled low frequencies with natural balance, making it ideal for speech, announcements, and live sound applications.
Designed for seamless integration, this driver works effortlessly in 2-way or 3-way system configurations, complementing other components to create a well-balanced and efficient sound system.
With its efficient CCAW voice coil, premium cone set, and full-range performance, this speaker is the best choice for public addressing and live programs, delivering clear, powerful, and dependable sound in every application.
