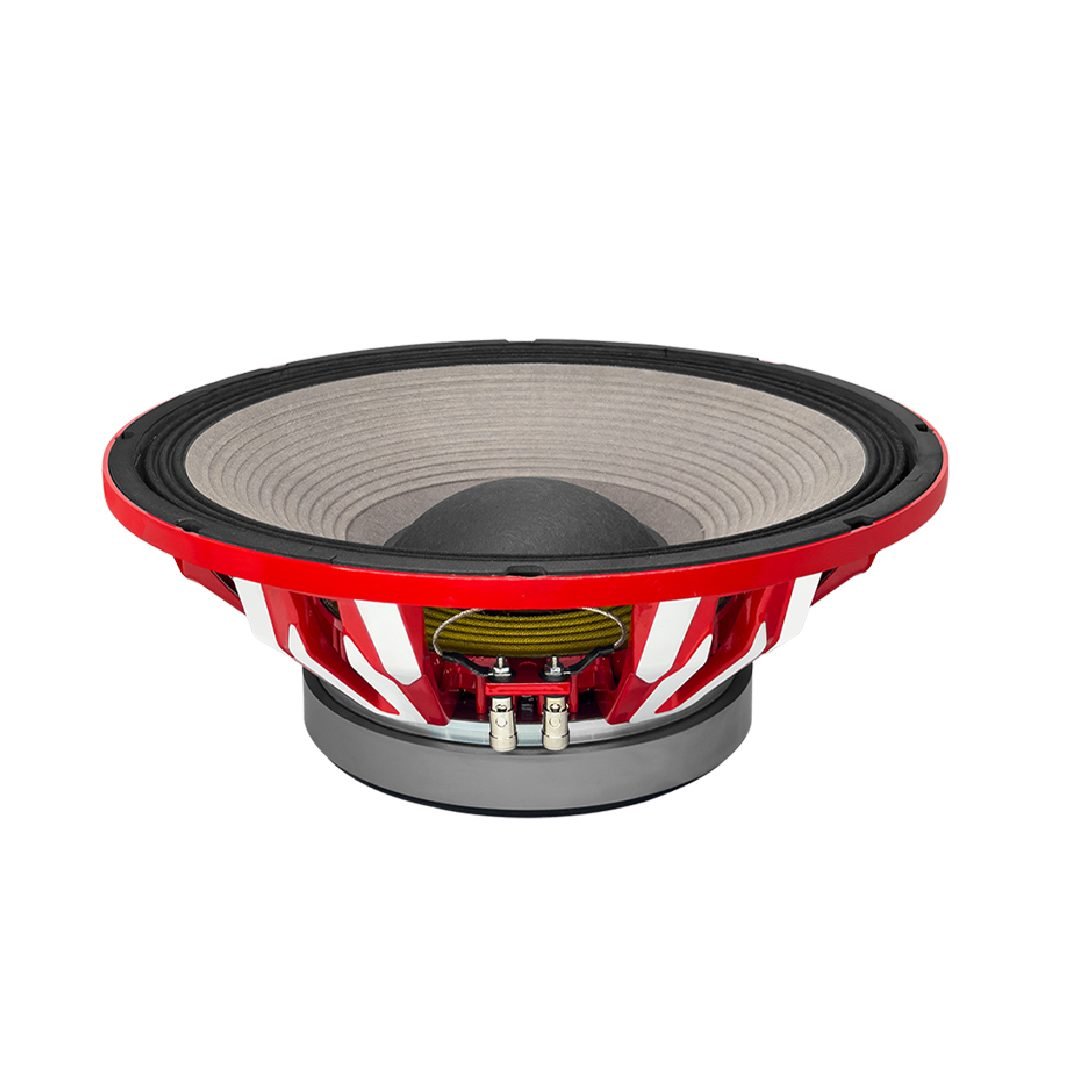

15BW-1000
15BW-1000 is specially designed to provide unmatched clarity with a combination of low frequencies. It originates from a 4” IN/OUT Voice Coil. The malaysian cone set provides ultimate MIDs. The 220mm high grade ferrite magnet provides unmatched power for the long run. The BW series signature frame with B4 embossing makes it looks apart. Triple roll surround helps in controlling movements precisely combined with its premium suspension system.
| Nominal Diameter | 15″ |
|---|---|
| Rated Impedance | 8Ω |
| Power Capacity | 1000 Watts RMS |
| Sensitivity | 99dB |
| Frequency Range | 45Hz – 3500Hz |
| Voice Coil Diameter | 4 inch |
| Voice Coil Material | Til/Copper IN/OUT Winding |
| Magnet Size | 220 × 25 mm |
| Magnet Type | Ferrite |
| Chassis Material | Aluminium Casting |
| Cone Type | Pulp Paper |
| Dual/Dust Cap Type | Pulp Paper |
The 15BW-1000 is specially designed to deliver unmatched clarity while producing powerful and controlled low-frequency performance, making it an excellent choice for professional audio and sound reinforcement systems. Engineered with precision and durability in mind, this driver offers a perfect balance between deep bass response and clear mid-range output.
At the heart of the 15BW-1000 lies a robust 4-inch IN/OUT voice coil, developed to handle high power levels efficiently while minimizing power compression. This advanced voice coil structure ensures stable thermal performance, allowing the driver to maintain consistent output and clarity even during extended operation at high volumes.
The driver features a premium Malaysian cone set, carefully selected to deliver ultimate mid-range clarity while maintaining strong low-frequency response. This cone material provides the ideal combination of stiffness and flexibility, enabling accurate sound reproduction with excellent transient response and reduced distortion.
Powering the driver is a massive 220mm high-grade ferrite magnet, designed to deliver strong and reliable magnetic force for long-term performance. This powerful motor structure ensures excellent control over cone movement, supporting extended long-throw operation and maintaining sound accuracy over prolonged use.
Visually and structurally, the driver stands out with the BW Series signature frame featuring B4 embossing, giving it a distinctive and premium appearance while enhancing overall strength and rigidity. The frame design also contributes to improved heat dissipation and mechanical stability.
A triple roll surround, combined with a premium suspension system, allows precise control of cone movement, ensuring superior linear behavior even at high excursions. This advanced suspension design minimizes distortion, improves durability, and enhances overall sound clarity.
With its powerful motor system, refined cone design, and precise mechanical control, the 15BW-1000 delivers reliable performance, exceptional clarity, and controlled bass, making it an ideal choice for professional PA systems, DJ setups, and live sound applications.
