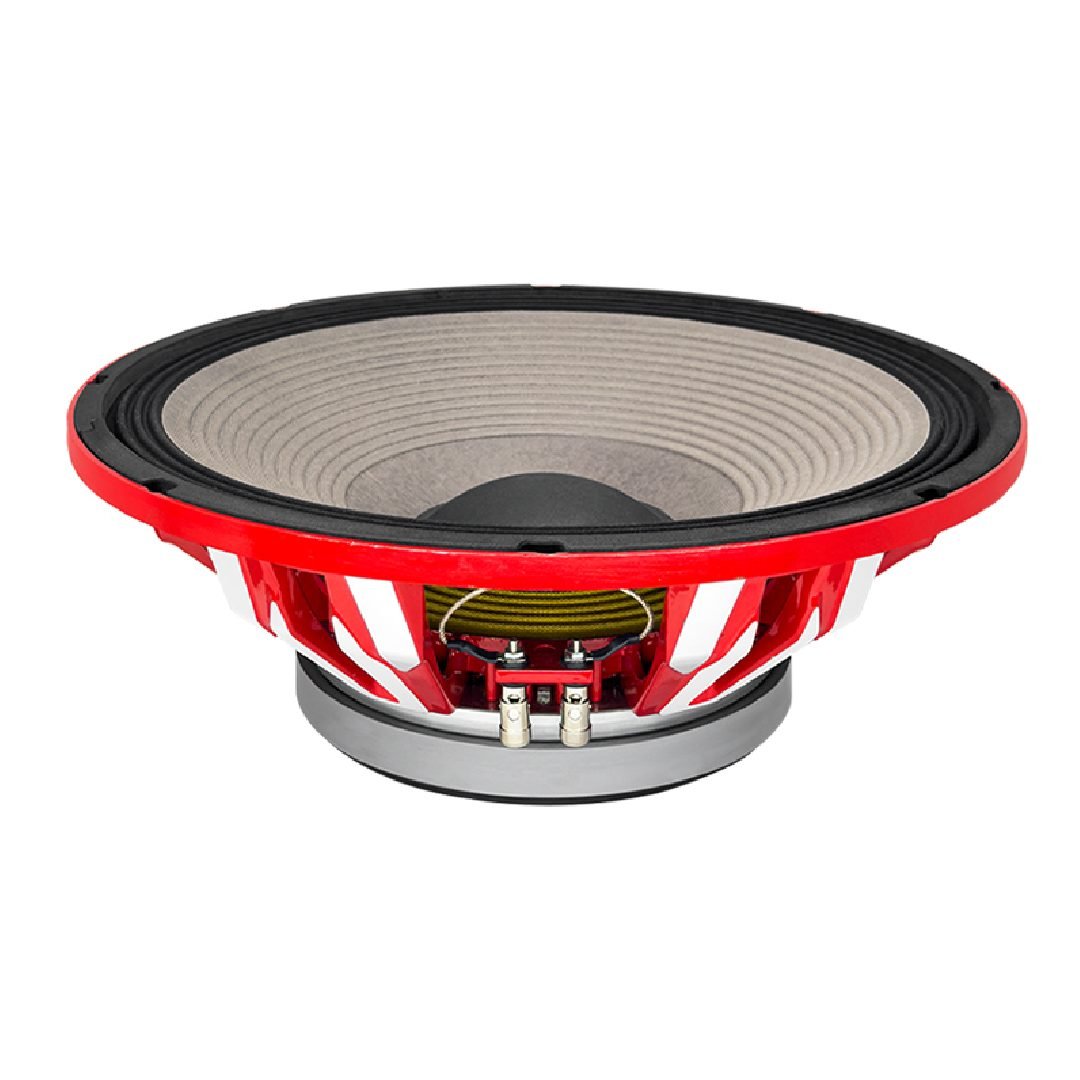

15BW-800
15BW-800 is specially designed to provide unmatched clarity and loudness. It originates from a 4” IN/OUT CCAW voice Coil. The malaysian cone set provides ultimate MIDs. The 220mm high grade ferrite magnet provides unmatched power for the long run. Triple roll surround helps in controlling movements precisely combined with its premium suspension system provide unmatched throw and loudness. The BW series signature frame with B4 embossing makes it looks apart.
| Nominal Diameter | 15″ |
|---|---|
| Rated Impedance | 8Ω |
| Power Capacity | 800 Watts RMS |
| Sensitivity | 99dB |
| Frequency Range | 48Hz – 4KHz |
| Voice Coil Diameter | 4 inch |
| Voice Coil Material | Til IN/OUT Winding – CCAW |
| Magnet Size | 220 × 20 mm |
| Magnet Type | Ferrite |
| Chassis Material | Aluminium Casting |
| Cone Type | Pulp Paper, Triple Roll |
| Dual/Dust Cap Type | Pulp Paper |
The 15BW-800 is specially engineered to deliver unmatched clarity, powerful loudness, and superior low-frequency performance, making it an ideal choice for professional audio, DJ systems, and high-performance PA setups. Designed with precision, it combines advanced components and robust construction to provide reliable performance even under demanding conditions.
At its core, the driver features a 4-inch IN/OUT CCAW voice coil, designed for efficient power handling and minimal distortion. This advanced voice coil structure ensures consistent output and precise cone control, enabling accurate sound reproduction across a wide range of frequencies.
The Malaysian cone set is specifically selected to deliver exceptional mid-range clarity, providing balanced and natural sound that complements deep bass response. Paired with a 220mm high-grade ferrite magnet, the driver produces powerful, long-lasting output with impressive throw, ensuring your system performs consistently even during extended high-power use.
Precision movement is ensured by the triple roll surround, which works in perfect synergy with the premium suspension system to control cone excursion accurately. This combination enhances linearity, reduces distortion, and delivers tight, punchy low frequencies, making each beat impactful and well-defined.
The driver’s BW Series signature frame with B4 embossing not only reinforces structural integrity but also gives it a premium and distinctive appearance, setting it apart visually from other sub-bass drivers in its class.
With its combination of high-quality materials, precise engineering, and superior power handling, the 15BW-800 offers unmatched throw, clarity, and loudness, making it an excellent choice for professional DJ setups, live sound systems, and high-end PA applications where performance cannot be compromised.
