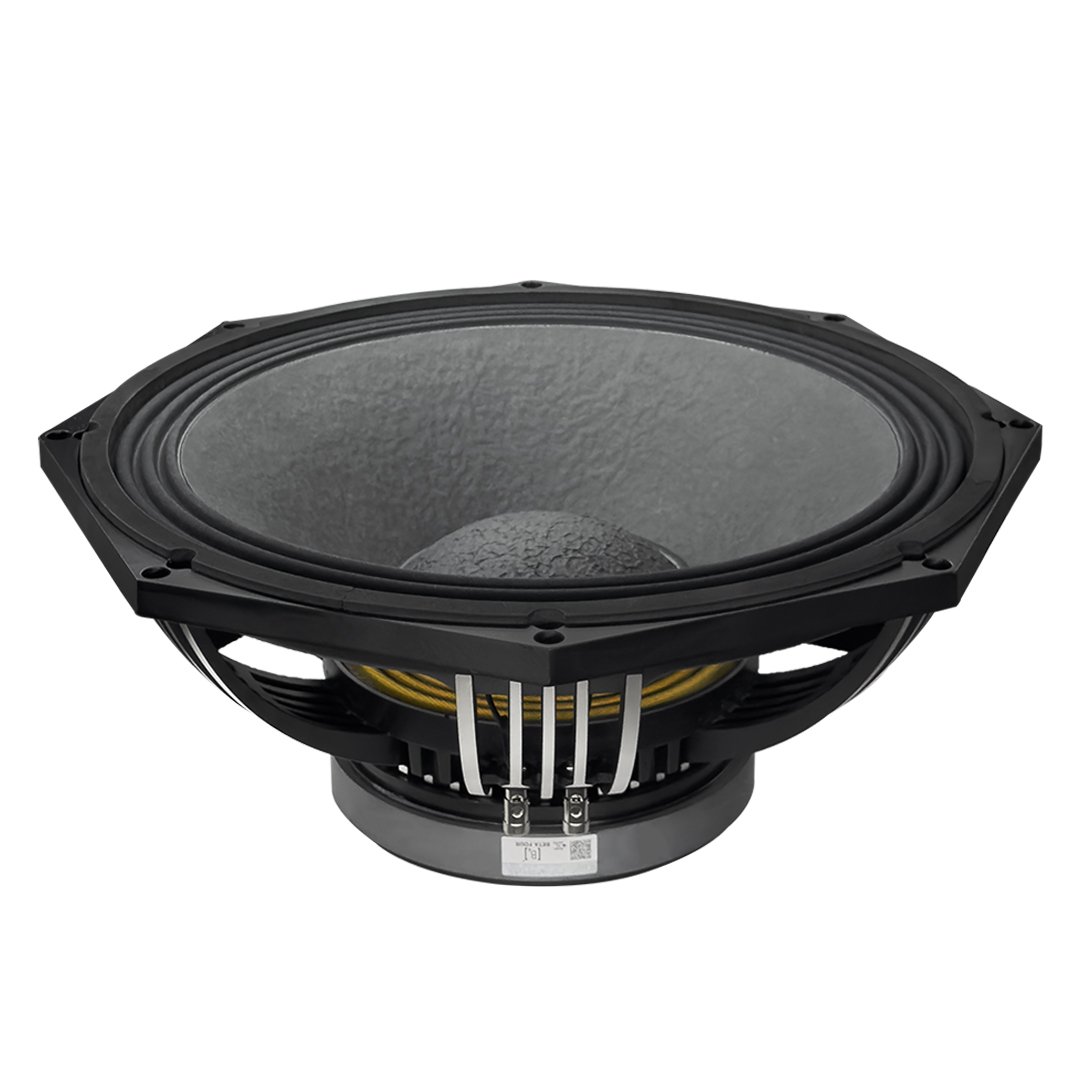

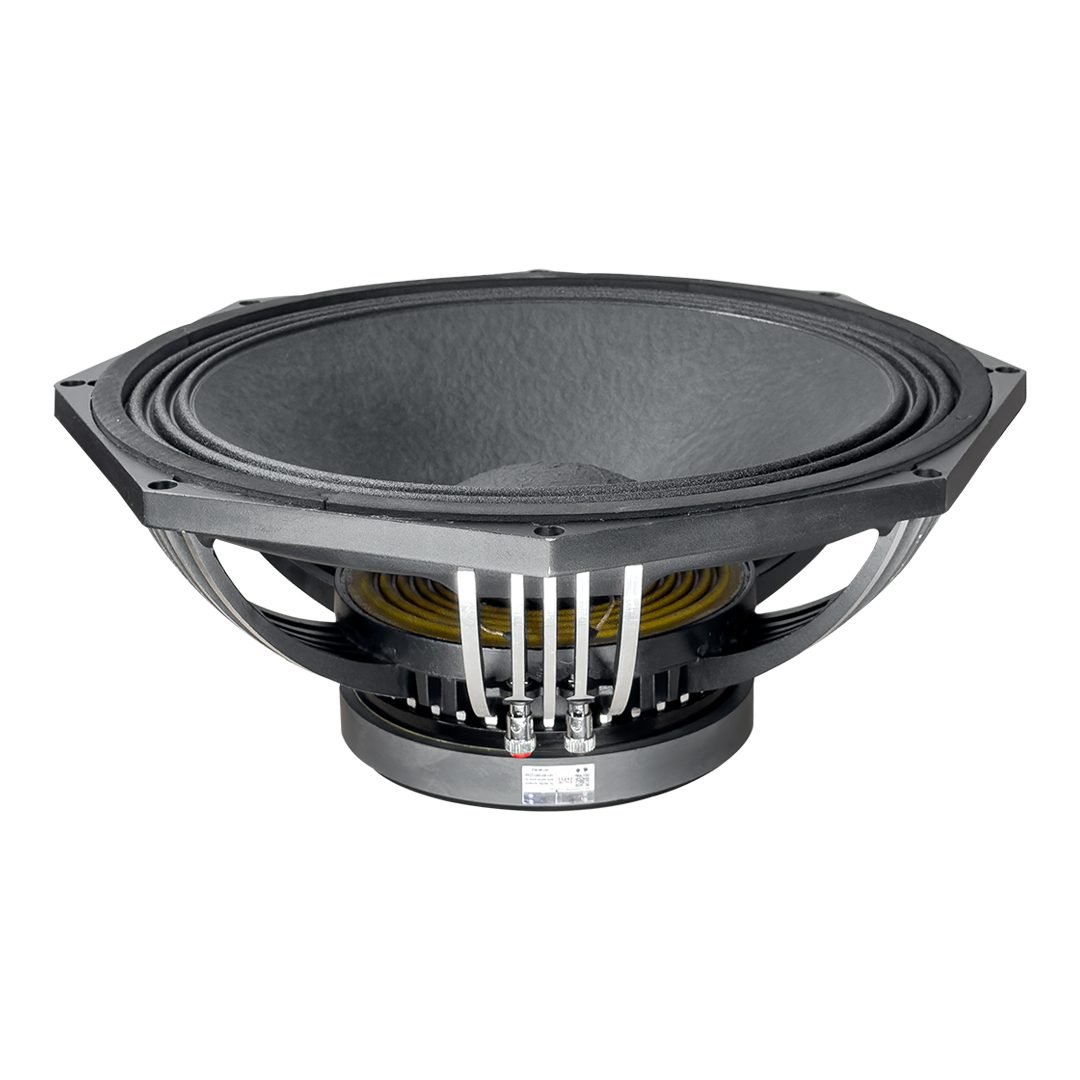

18XB-1200
It has a 4″ in/out voice coil combined with a High Grade ferrite magnet to provide tremendous bass and long throw with an RMS power of 1200W. Malaysian Cone set is combined with the dual suspension system to get a better linear behaviour of the driver. It provides EXPLOSIVE BASS which makes it the ULTIMATE CHOICE for SUB-BASS Systems.
| Nominal Diameter | 18″ |
|---|---|
| Rated Impedance | 8Ω |
| Power Capacity | 1200 Watts |
| Sensitivity | 96dB |
| Frequency Range | 30Hz – 1500Hz |
| Voice Coil Diameter | 4 Inch |
| Voice Coil Material | Til/Copper IN/OUT Winding |
| Magnet Size | 220 x 110 x 25 |
| Magnet Type | Ferrite |
| Chassis Material | Aluminium Casting |
| Cone Type | Pulp Paper |
| Dual/Dust Cap Type | Pulp Paper |
Designed for extreme low-frequency performance, this high-power sub-bass driver is built to deliver deep, powerful, and controlled bass for professional audio applications. At the core of the driver is a 4-inch IN/OUT voice coil, engineered to handle high thermal loads while minimizing power compression. This advanced voice coil design, combined with a high-grade ferrite magnet, enables tremendous bass output with an extended long-throw capability, ensuring powerful and consistent performance even at high sound pressure levels.
With an impressive RMS power handling of 1200W, this driver is capable of sustaining continuous high-output operation without compromising clarity or reliability. The robust motor structure ensures strong magnetic control, allowing the cone to move efficiently and accurately while delivering impactful low-frequency energy.
A premium Malaysian cone set, integrated with a dual suspension system, ensures superior linear behavior throughout the driver’s entire range of motion. This combination keeps cone displacement stable and precisely controlled, reducing distortion and preventing unwanted mechanical stress. As a result, the bass remains tight, clean, and punchy, even during extreme excursions.
The dual suspension system plays a crucial role in maintaining perfect alignment between the voice coil and magnetic gap, which improves overall efficiency and enhances durability. This precise mechanical control contributes to smoother frequency response and improved transient accuracy, making the driver ideal for demanding sub-bass applications.
Built specifically for sub-bass systems, this driver excels in professional PA setups, DJ sound systems, live concerts, clubs, and large venues where deep, high-impact bass is essential. Its rugged construction and high-quality components ensure reliable long-term performance under continuous heavy-duty use.
Delivering explosive bass, exceptional power handling, and precise linear performance, this sub-bass driver stands out as the ultimate choice for professional sub-bass systems that demand both power and reliability.
