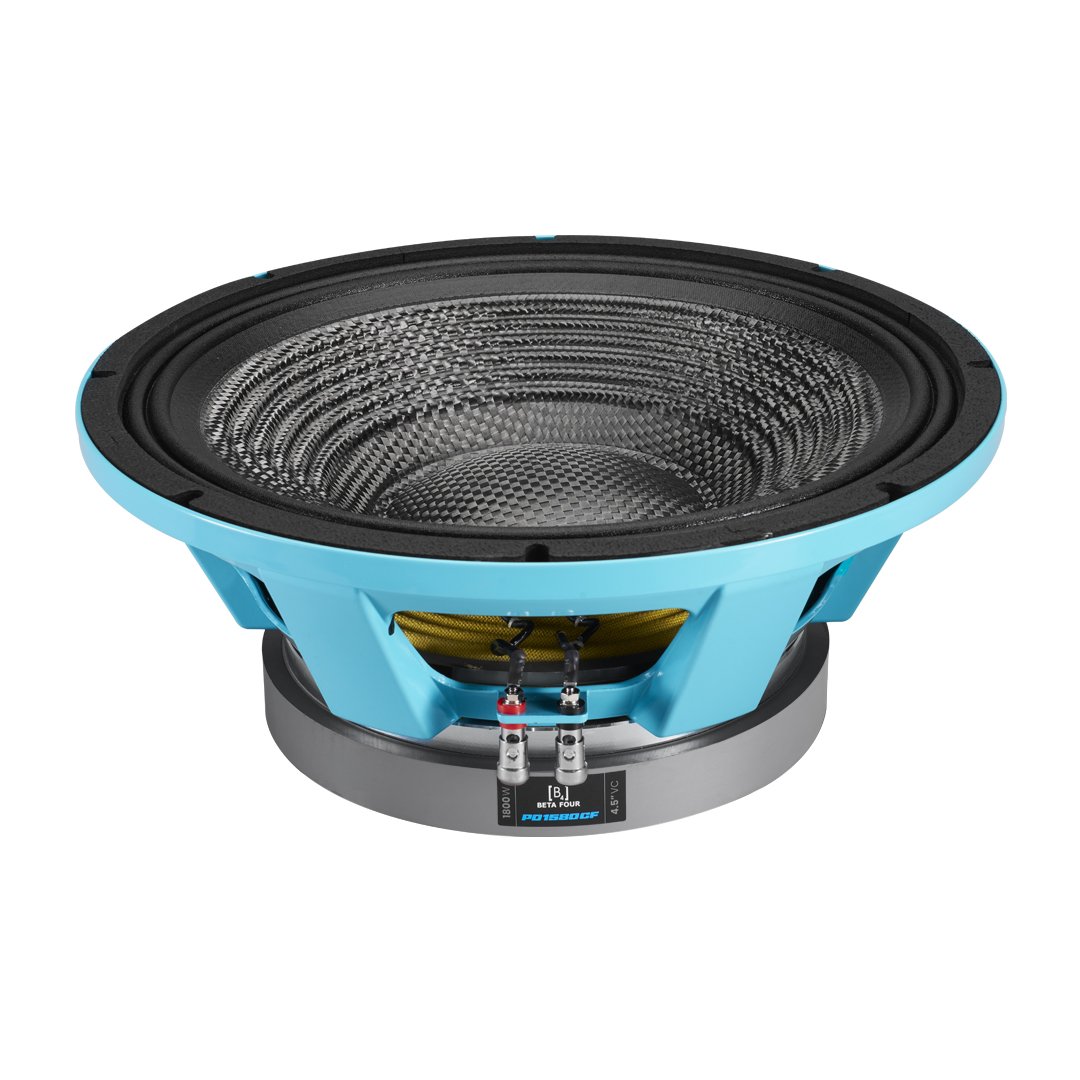

PD 1580CF
It originates from a 4.5″ VOICE COIL combined with a High-Grade Ferrite magnet to provide tremendous bass and long-throw with an RMS power of 1800W. Carbon Fibre Cone Set is combined with the dual suspension system to get a better linear behavior of the driver. It has tight punch which makes it the Best Choice for DJ Systems.
| Nominal Diameter | 15″ |
|---|---|
| Rated Impedance | 8Ω |
| Power Capacity | 1800 Watts RMS |
| Sensitivity | 98dB |
| Frequency Range | 38Hz – 1.6KHz |
| Voice Coil Diameter | 4.5 inch |
| Voice Coil Material | IN/OUT Winding |
| Magnet Size | 250 x 30 mm |
| Magnet Type | Ferrite |
| Chassis Material | Aluminium Casting |
| Cone Type | Carbon Fibre |
| Dual/Dust Cap Type | Carbon Fibre |
Engineered to meet the high-impact demands of modern DJ sound systems, this powerful low-frequency driver delivers deep bass, tight punch, and reliable performance. At the core of the design is a robust 4.5-inch voice coil, combined with a high-grade ferrite magnet to create a strong and efficient motor structure. This combination enables tremendous bass output with extended long-throw capability, ensuring consistent and powerful performance even at high sound pressure levels. With an impressive RMS power handling of 1800W, the driver is built to handle continuous high-power operation without loss of clarity or efficiency.
The strong magnetic assembly provides excellent control over cone movement, allowing accurate reproduction of low frequencies with authority and precision. This results in bass that is not only powerful but also tight and well-defined—an essential requirement for professional DJ applications where punch and impact are critical.
A premium Malaysian cone set, carefully integrated with a high-quality suspension system, ensures superior linear behavior across the driver’s entire operating range. This advanced mechanical design keeps cone displacement stable and precisely controlled, minimizing distortion and unwanted mechanical stress. The improved linearity enhances transient response, delivering fast, punchy bass that responds instantly to dynamic audio signals.
