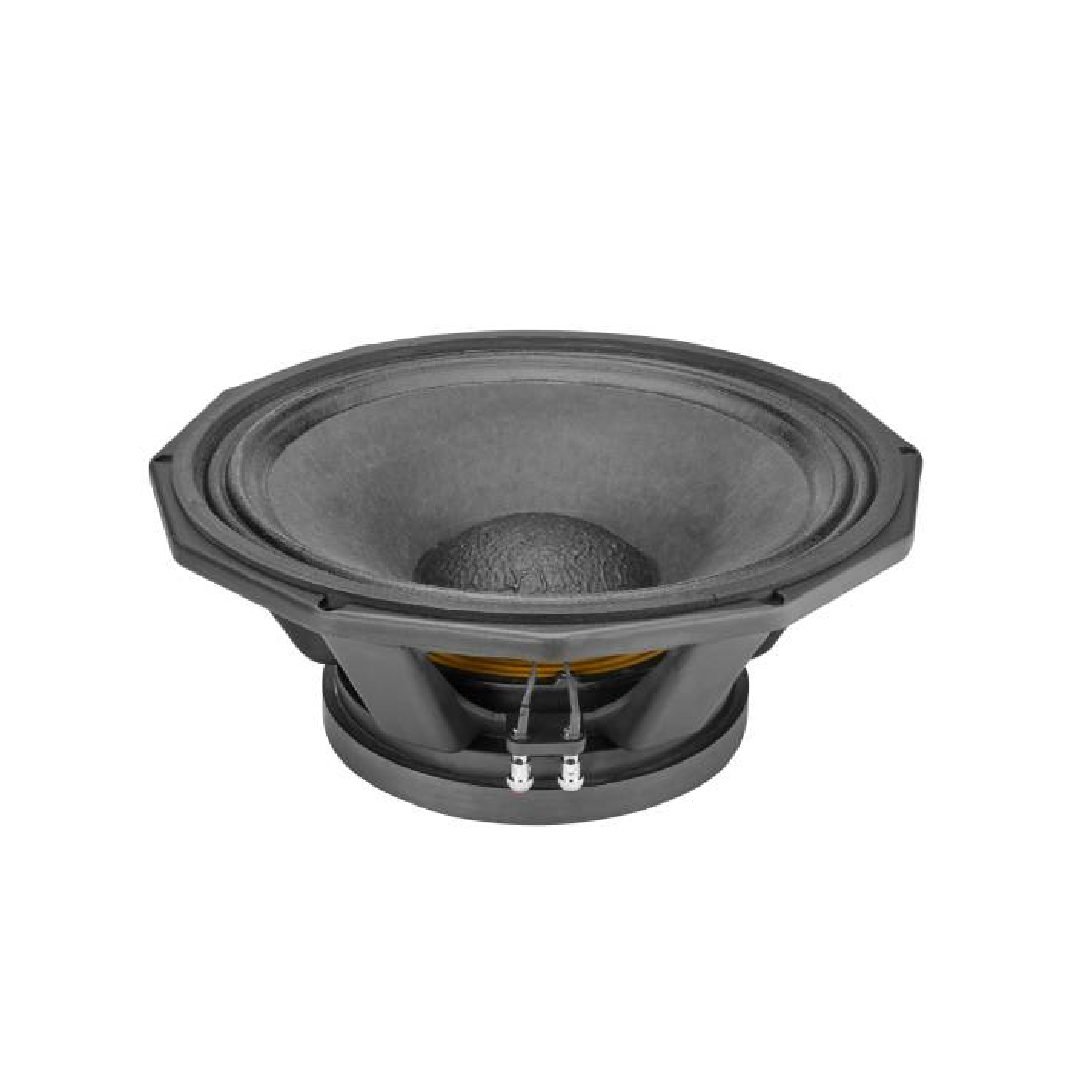

PD-1860
It originates from a 5″ IN/OUT VOICE COIL to minimize power compression.
Displacements are precisely controlled. Dual suspension system results in a superior linear behaviour. Malaysian Cone set combined with the suspension system provides EXPLOSIVE BASS which makes it the ULTIMATE CHOICE for SUB-BASS Systems.
| Nominal Diameter | 18″ |
|---|---|
| Rated Impedance | 8Ω |
| Power Capacity | 2000 Watts RMS |
| Sensitivity | 98dB |
| Frequency Range | 30Hz – 2KHz |
| Voice Coil Diameter | 5 inch |
| Voice Coil Material | Til/Copper IN/OUT Winding |
| Magnet Size | 274 x 140 x 25 mm |
| Magnet Type | Ferrite |
| Chassis Material | Aluminium Casting |
| Cone Type | Pulp Paper |
| Dual/Dust Cap Type | Pulp Paper |
Designed for high-impact low-frequency performance, this advanced sub-bass driver is engineered to deliver exceptional power, precision, and reliability. At its core is a 5-inch IN/OUT voice coil, specifically developed to minimize power compression during high-output operation. This ensures consistent performance, allowing the driver to maintain strong bass response and clarity even under continuous heavy loads.
Precise control over cone displacement is a key feature of this driver’s superior design. Every movement is accurately managed to provide stable and distortion-free bass reproduction, even at extreme excursion levels. This results in tighter low-end output, enhanced sound accuracy, and improved durability, making it ideal for demanding professional applications.
The driver incorporates a dual suspension system that ensures excellent linear behavior throughout the entire range of motion. By reducing unwanted cone rocking and mechanical stress, the suspension system helps maintain a smooth frequency response and significantly lowers harmonic distortion. The result is clean, punchy, and powerful bass that remains consistent at high sound pressure levels.
A premium Malaysian cone set works in perfect harmony with the suspension system to deliver explosive bass performance with impressive depth and impact. The cone’s optimized stiffness and flexibility allow fast response and strong low-frequency energy, producing bass that is both deep and dynamic.
Built specifically for sub-bass systems, this driver is an ideal choice for professional PA systems, DJ setups, live sound reinforcement, and large venues where powerful and reliable low-frequency output is essential. Its robust construction and high-quality components ensure long-term performance under continuous high-power usage.
Combining advanced engineering with durable materials, this sub-bass driver stands out as a reliable and high-performing solution, making it the ultimate choice for powerful and controlled sub-bass applications.
