D2-10000

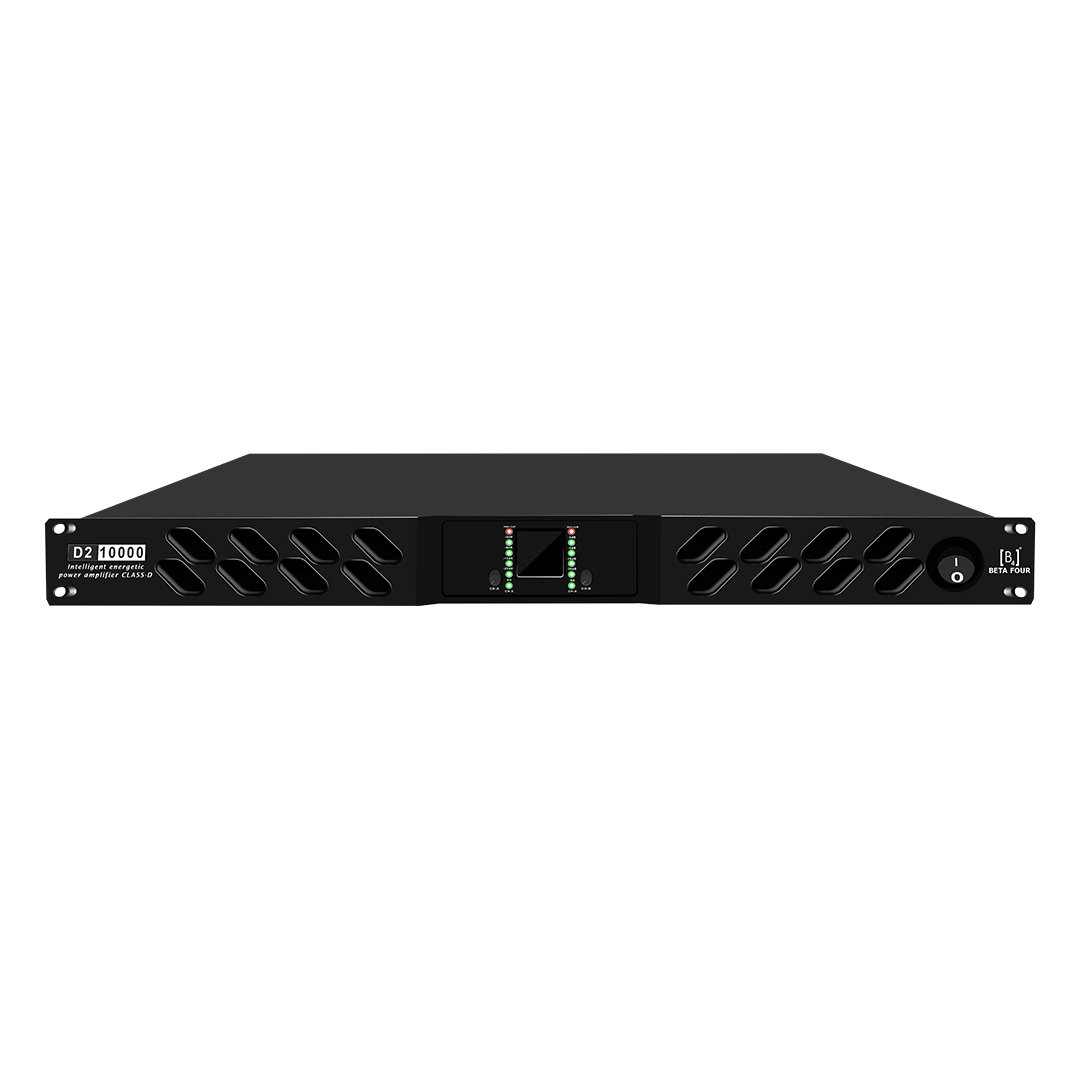

Front Panel Shows:
- SMART DIGITAL LCD DISPLAY that shows temperature and operating mode.
- 2x precise volume controls.
- 6 LED indicators per channel.
- Power on/off switch, 19″ rack mount.
Rear Panel Shows:
- Input connectors 2x FXLR & mXLR sockets.
- Output connectors – 2x SpeakON sockets.
- Sensitivity selector switch (41dB, 38dB, 35dB)
- The same switch works as a clip on/off switch, it also works as an operation mode switch.
- 5x force cooling fans.
| Rated Power (Stereo)* | 2×4750W @2Ω, 2×3800W @4Ω, 2×2000W @8Ω |
|---|---|
| Rated Power (Bridge) | 2×9500W @4Ω, 2×6850W @8Ω |
| Damping Factor | >5000 |
| Smart Protections | DC, Short Circuit, Over Heat, Clip, In/Out Overload |
| Cooling | 5× Force cooling fans |
| Input Sensitivity | 32dB, 35dB, 38dB, 41dB |
| Frequency Response | 20Hz – 20kHz |
| S/N Ratio – Slew Rate | 100dB / 50Vµs |
| Input Connectors | 2× FXLR & MXLR socket for signal input |
| Power Supply | 220V AC ±10% ~ 50Hz |
| Output Connectors | 2× Speakon NL4 socket |
| Dimensions (MM) | 482W × 470D × 44H |
| Weight | 12 kg |
The D2-10000 is a high-performance Class-D professional power amplifier engineered for demanding live sound, touring, and fixed installation applications. Designed in a compact 1U 19-inch rack chassis, it delivers massive output power with exceptional efficiency, reliability, and control.
At the front, a Smart Digital LCD Display provides real-time system monitoring, showing temperature and operating mode, while dual precision volume controls and 6 LED indicators per channel ensure accurate level control and visual feedback during operation. The rugged front panel also includes a dedicated power on/off switch, making the D2-10000 ideal for professional rack setups.
The rear panel offers FXLR and MXLR balanced signal inputs along with Speakon NL4 output connectors for secure and stable speaker connections. A multi-function sensitivity selector switch (32dB, 35dB, 38dB, 41dB) also functions as a clip on/off switch and operation mode selector, giving engineers flexibility across different system configurations.
Delivering up to 4750W per channel at 2Ω and a bridge power of up to 9500W, the D2-10000 maintains tight, accurate low-frequency control with a damping factor greater than 5000. Its Smart Protection System safeguards the amplifier against DC faults, short circuits, overheating, clipping, and input/output overload, ensuring stable performance even under extreme conditions.
For thermal reliability, the amplifier is equipped with five high-efficiency forced cooling fans, allowing continuous operation in high-power environments. Operating on 220V AC ±10% / 50Hz, the D2-10000 combines high output capability with consistent performance and long-term durability.
