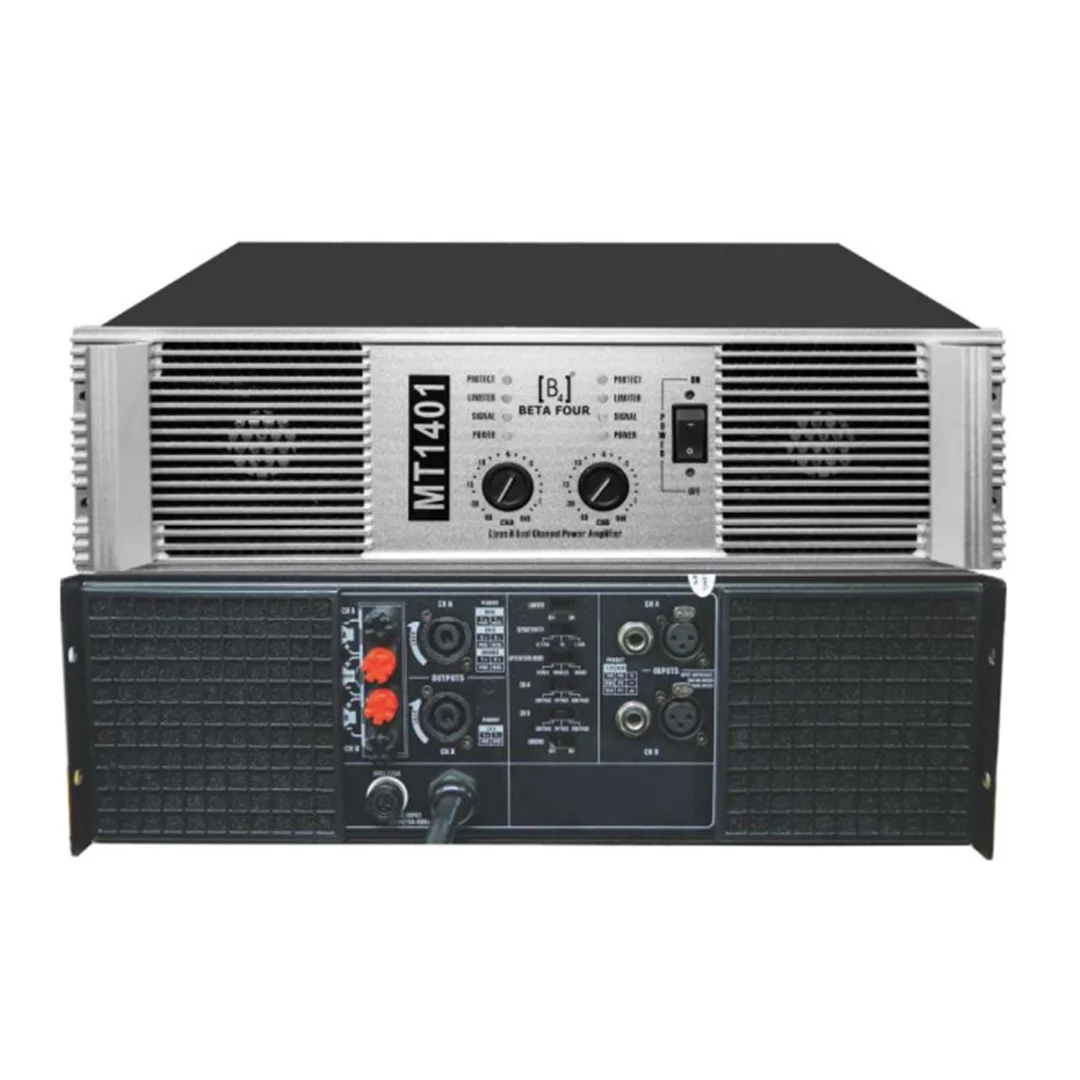

MT-1401
Front Panel Shows:
- Precision-dependent volume controls.
- 4 LED bar (power, signal, limiter & protect) for each channel.
- Power on/off switch with circuit protector, easy-to-carry front handles.
Rear Panel Shows:
- Input connectors – 2× MXLR & 2× FXLR sockets.
- Output connectors – 2× Speakon sockets and 2× Binding post terminals for both channels.
- Sensitivity selector switch (0.77V / 1.4V).
- Operating mode switch (stereo / parallel / bridge).
- Crossover switch (low pass / by pass) for each channel with low-frequency tone control.
| Program Power (Stereo)* | 2×2800W @2Ω, 2×2400W @4Ω, 2×1400W @8Ω |
|---|---|
| Rated Power (Bridge) | 3600W @8Ω |
| Damping Factor | >800 |
| Smart Protections | DC, Short Circuit, Over Heat, Clip, Overload, zero current switch |
| Cooling | 4× Force cooling fans |
| Input Sensitivity | 0.775V / 1.4V |
| Frequency Response | 20Hz – 20kHz |
| S/N Ratio – Slew Rate | 102dB / 20Vµs |
| Input Connectors | 2× MXLR socket for signal input |
| Power Supply | 220V AC ±10% ~ 50Hz |
| Output Connectors | 2× Speakon NL4 socket & 2× Binding posts |
| Dimensions (MM) | 483W × 488D × 132H |
| Weight | 38Kg |
Precision-dependent volume controls.
4 LED bar (power, signal, limiter & protect) for each channel.
Power on/off switch with circuit protector, easy-to-carry front handles.
Rear Panel Shows:
Input connectors – 2× MXLR & 2× FXLR sockets.
Output connectors – 2× Speakon sockets and 2× Binding post terminals for both channels.
Sensitivity selector switch (0.77V / 1.4V).
Operating mode switch (stereo / parallel / bridge).
Crossover switch (low pass / by pass) for each channel with low-frequency tone control.
