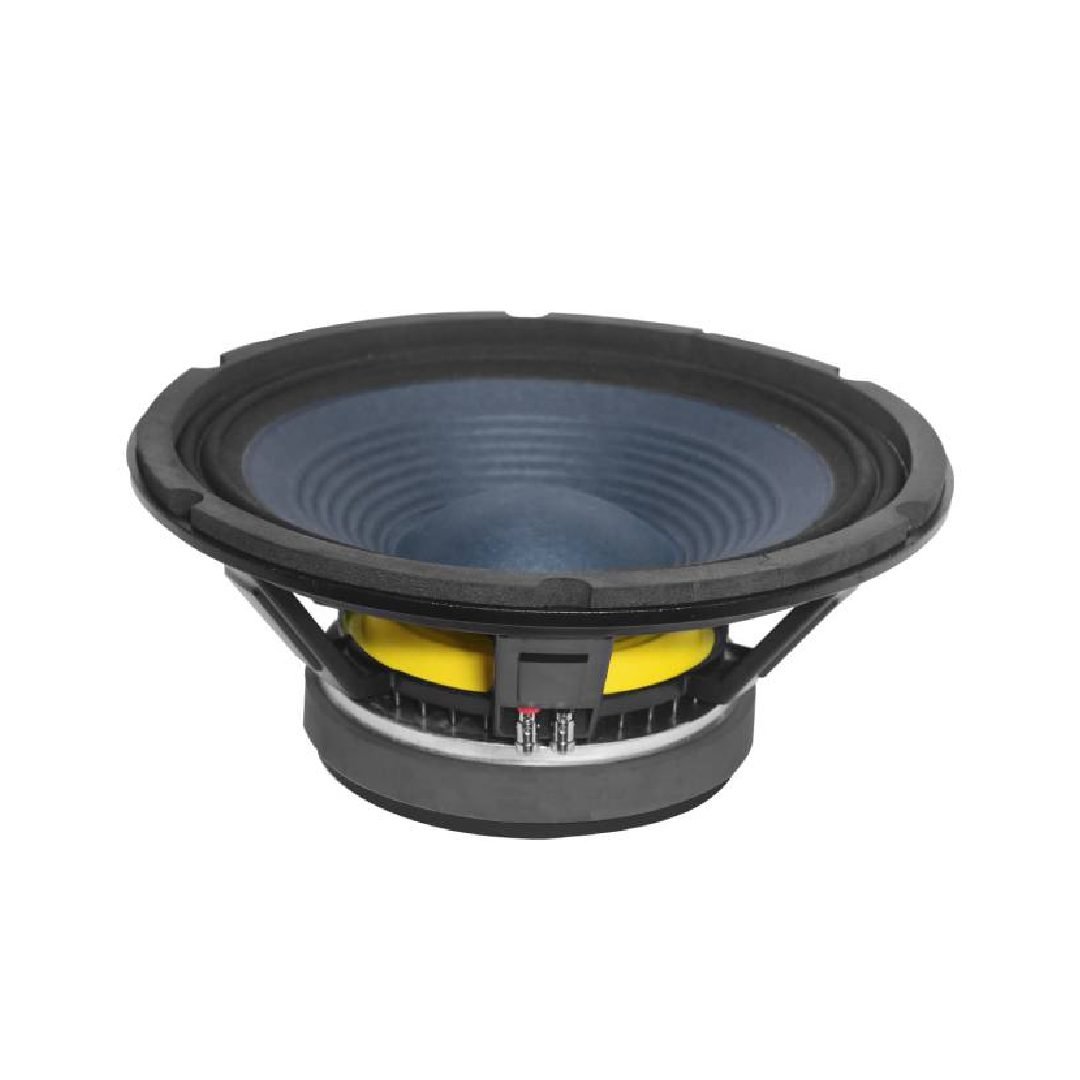

P12-300/400
The P12 series is specially designed to upgrade your 2 or 3-way systems to a new level. It originates from a 3″ Voice Coil. The Premium Cone Set with the high-grade ferrite magnet provides an amazing HI-MID response. As the transducer gives a long throw, it is an amazing choice for your two or three-way systems.
| Nominal Diameter | 12″ |
|---|---|
| Rated Impedance | 8Ω |
| Power Capacity | 300 Watts / 400 Watts RMS |
| Sensitivity | 96dB |
| Frequency Range | 55Hz – 3kHz |
| Voice Coil Diameter | 3 inch |
| Voice Coil Material | Til / Copper |
| Magnet Size | 180×20 mm / 190×20 mm |
| Magnet Type | Ferrite |
| Chassis Material | Aluminium Casting |
| Cone Type | Pulp Paper |
| Dual/Dust Cap Type | Pulp Paper |
The P12 Series is specially engineered to upgrade your 2-way or 3-way speaker systems to an entirely new level of performance. Designed for professional audio applications, it delivers exceptional HI-MID clarity, powerful output, and reliable long-throw performance, making it an ideal choice for live sound, DJ setups, and high-efficiency PA systems.
At the heart of the P12 Series is a 3-inch voice coil, developed to handle high power while maintaining excellent thermal stability and linear movement. This ensures consistent sound output even during extended use, allowing vocals and instruments to cut through the mix with precision and clarity.
The premium cone set, combined with a high-grade ferrite magnet, is acoustically optimized to deliver an amazing HI-MID response. This design provides crisp articulation, strong presence, and natural tonal balance, ensuring that speech, vocals, and melodic elements are reproduced with exceptional detail and accuracy.
One of the key strengths of the P12 Series is its long-throw capability, which allows the transducer to project sound efficiently over greater distances. This makes it especially suitable for medium to large venues where coverage, clarity, and consistency are critical. The controlled cone movement also helps reduce distortion, maintaining clean sound even at higher SPL levels.
Designed for seamless integration, the P12 Series works effortlessly in 2-way and 3-way system configurations, complementing both low-frequency and high-frequency drivers to create a balanced and powerful sound system.
With its robust construction, premium components, long-throw performance, and superior HI-MID clarity, the P12 Series is an excellent choice for upgrading professional 2-way and 3-way speaker systems, delivering clarity, power, and reliability you can trust.
